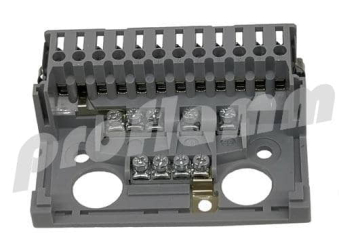

Clamping base AGK 11.6 for automatic burner controls with continuous phase, other version as AGK11.
• In addition to the 12 connection terminals
- 3 neutral conductor terminals, pre-wired to terminal 2, the neutral conductor input
- 4 protective conductor terminals that end in a lug for earthing the burner
- 2 support point terminals with the designations “31” and “32” • There are 2 openings for the cable entry through the base of the AGK11 plug-in base
• There are spring-loaded metal tabs on both narrow sides, which engage audibly when the machine is plugged into the housing
• A slight tilting movement of a screwdriver in the guide slots of this lock is sufficient to release it
• Neutral conductor terminals and support point terminals with self-forming screws • Terminal blocks with self-locking screws
• Delivered with terminals already opened for quick installation
• Color silver-grey RAL 9001
If required, stuffing box holder AGK65 or cable holder AGK66 should be ordered in addition.
• In addition to the 12 connection terminals
- 4 protective conductor terminals that end in a lug for earthing the burner
- 2 support point terminals with the designations “31” and “32”
• There are spring-loaded metal tabs on both narrow sides, which engage audibly when the machine is plugged into the housing
• A slight tilting movement of a screwdriver in the guide slots of this lock is sufficient to release it
• Neutral conductor terminals and support point terminals with self-forming screws • Terminal blocks with self-locking screws
• Delivered with terminals already opened for quick installation
• Color silver-grey RAL 9001
If required, stuffing box holder AGK65 or cable holder AGK66 should be ordered in addition.
