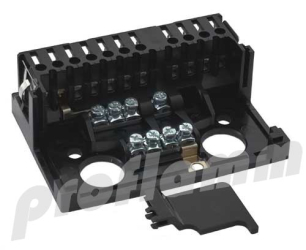

Clamping base AGK 11.7 for flame scanner LFS1, other version as AGK11.
• With partition wall element (D) for safe separation
• With encapsulated terminal compartment no. 8 for safe disconnection
• In addition to the 12 connection terminals
- 3 neutral conductor terminals, pre-wired to terminal 2, the neutral conductor input
- 4 protective conductor terminals that end in a lug for earthing the burner
- 2 support point terminals with the designations “31” and “32” • There are 2 openings for the cable entry through the base of the AGK11 plug-in base
• There are spring-loaded metal tabs on the two narrow sides, which engage audibly when the device is plugged into the housing
• A slight tilting movement of a screwdriver in the guide slots of this locking mechanism is sufficient to release it
• Neutral conductor terminal blocks and support point terminal blocks with self-forming screws
• Terminal blocks with self-locking screws
• Supplied with terminals already opened for quick installation
• Color black
If required, gland holder AGK65 or cable holder AGK66 should be ordered in addition.
• With partition wall element (D) for safe separation
• With encapsulated terminal compartment no. 8 for safe disconnection
• In addition to the 12 connection terminals
- 4 protective conductor terminals that end in a lug for earthing the burner
- 2 support point terminals with the designations “31” and “32”
• There are spring-loaded metal tabs on the two narrow sides, which engage audibly when the device is plugged into the housing
• A slight tilting movement of a screwdriver in the guide slots of this locking mechanism is sufficient to release it
• Neutral conductor terminal blocks and support point terminal blocks with self-forming screws
• Terminal blocks with self-locking screws
• Supplied with terminals already opened for quick installation
• Color black
If required, gland holder AGK65 or cable holder AGK66 should be ordered in addition.
